The water is evaporated by exploiting the heat and ventilation produced by the outdoor unit suitable for power cooling 9.000/12.000/18.000 btu (on-off) - 9.000/12.000/15.000 btu (inverter)

Residential use only greater power version available on request

Technical Specifications

Outdoor air temperature °C 33 min.
Internal air temperature °C 25
Increasing outside temperature, increases the evaporate capacity
Size L x A x P 30 x 47,5 x 5 (cm)
Wet weight gr. 730

Mounting

  1. Remove the VAPOBOX to plastic bag
  2. Hook VAPOBOX at the motor

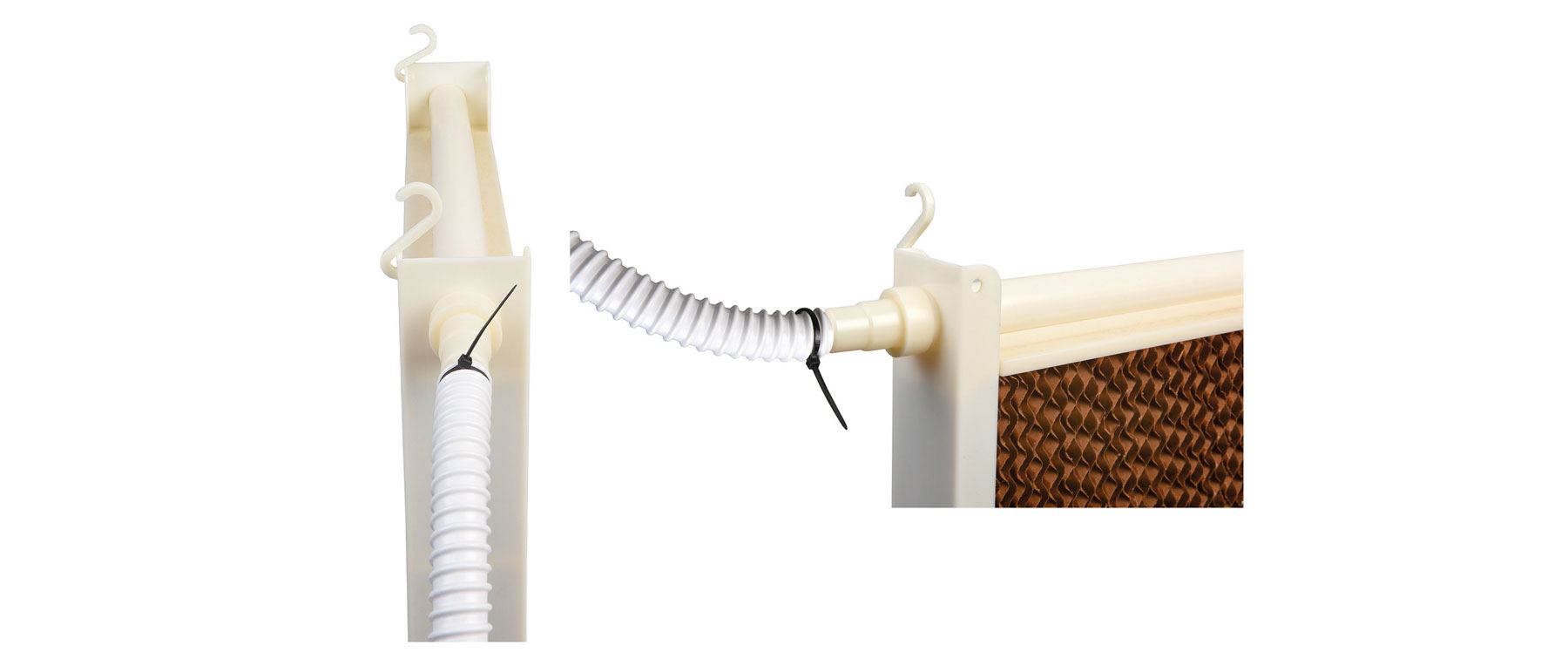

  3. Insert condensation pipe (A) in the part (B)

ATTENTION: TO AVOID INSTANTANEOUS RATE OF WATER, PLS. DO NOT DO MAKE SIFON IN THE TUBE​

Place Horizontally

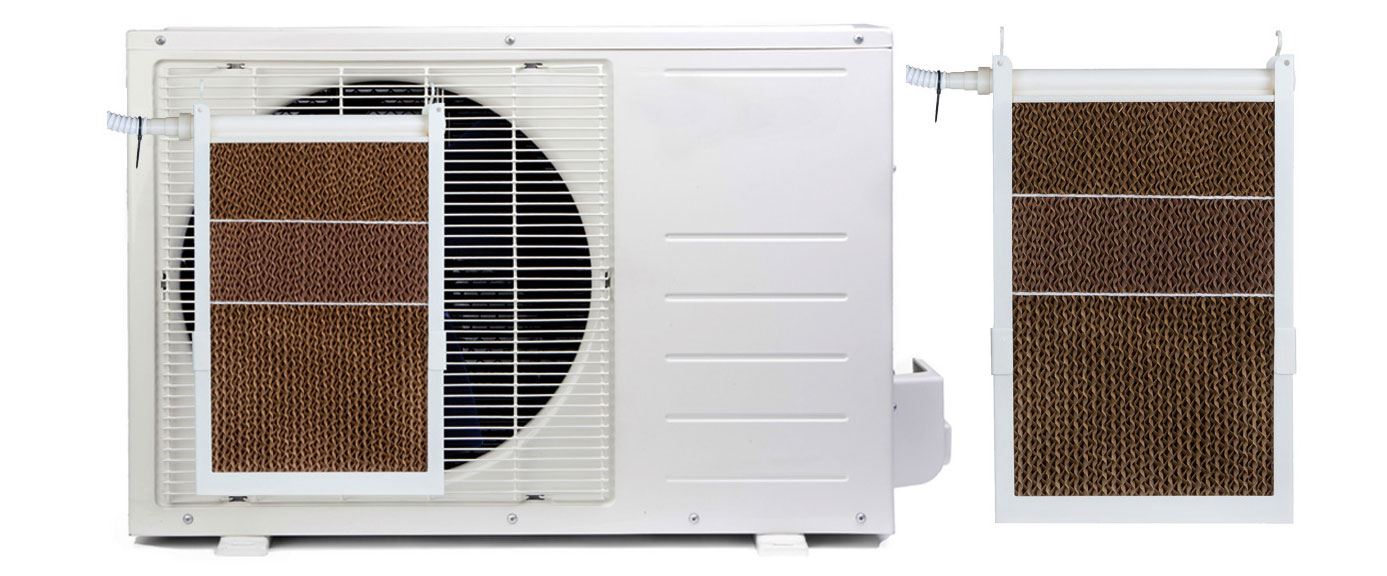

In order to proper functioning the VAPOBOX must be mounted horizontally and place in front of the fan, at the greater air flow

If necessary can be made new holes for to have the top part of the dissipating in line of the top part of the fan

Vapobox Kit

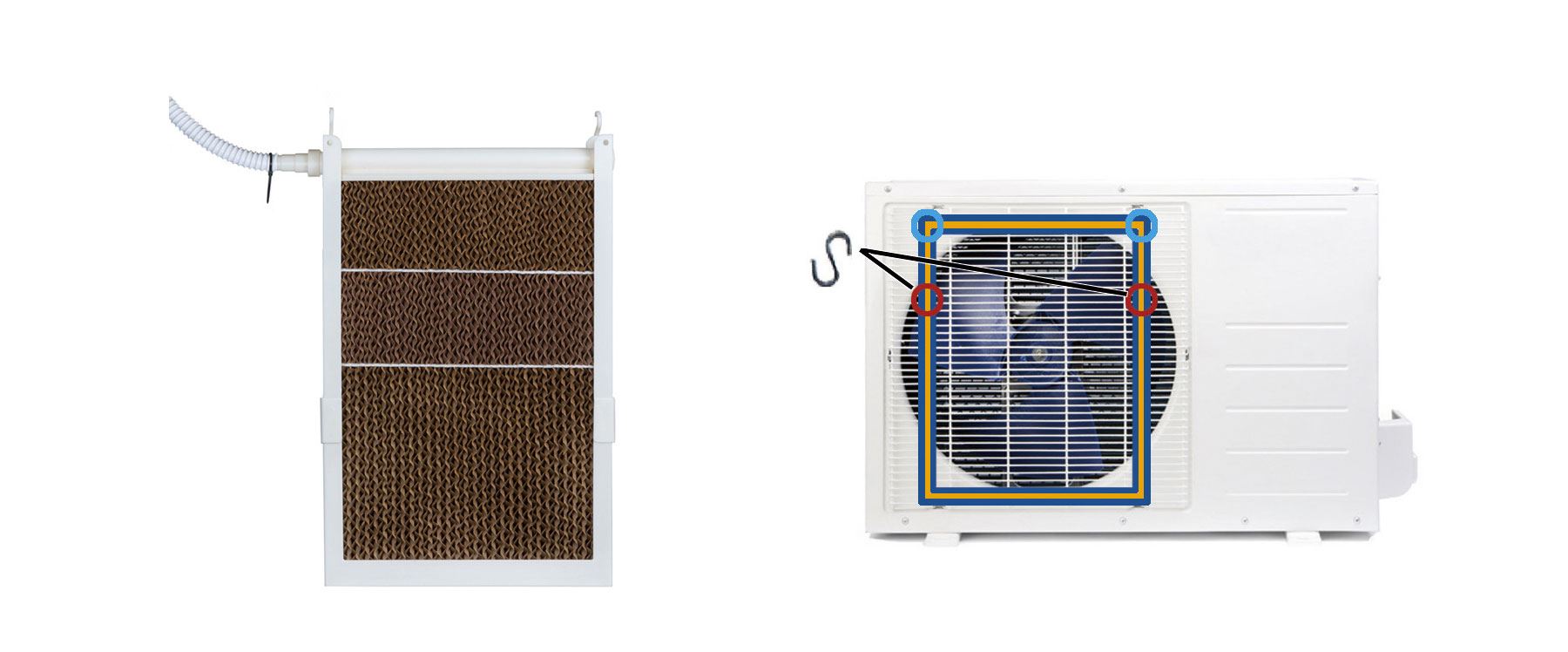

One hook is more longer than others to give the opportunity to install the VAPORBOX always in horizontal

Download technical data sheet

An innovative system for eliminating condensation water produced by indoor units during the summer.
The water is evaporated by axploiting the heat and ventilation produced by the outdoor unit.
